SmartSwap ATC - ER25

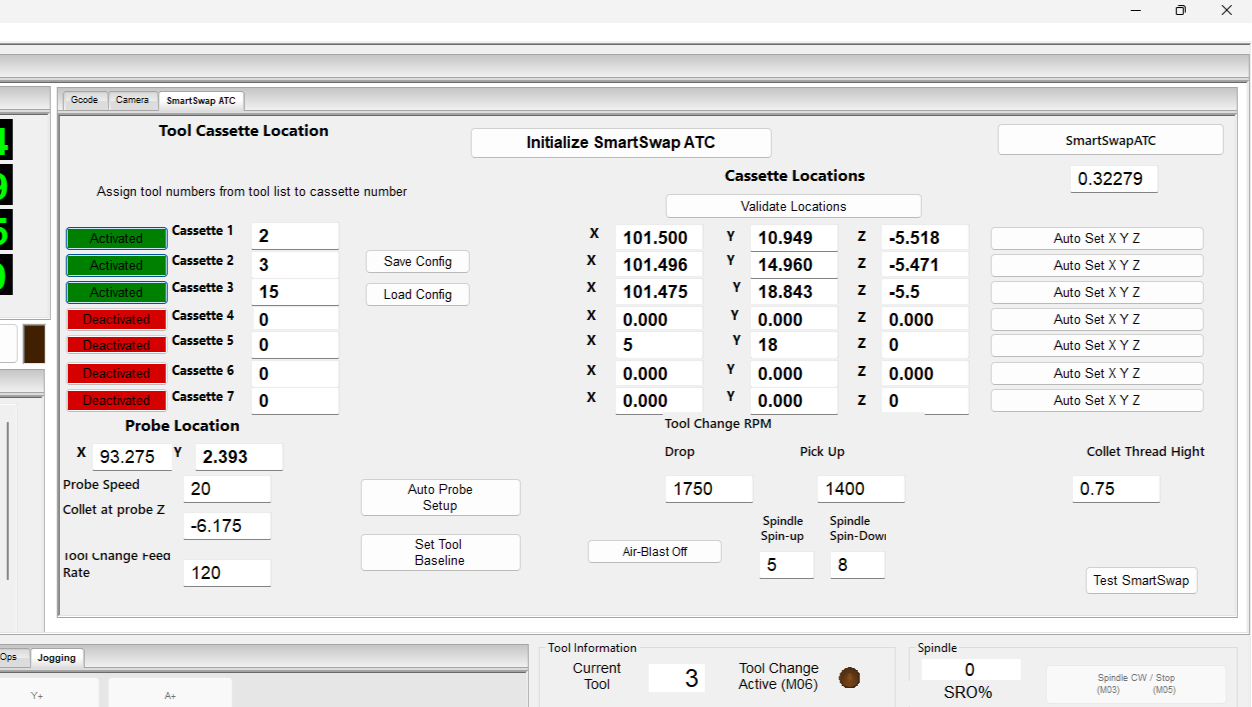

The SmartSwap ATC is a patent-pending modular automatic tool changer system that brings true ATC functionality to your Mach4-controlled CNC router—without the cost of an expensive spindle upgrade. Each kit includes three fully assembled cassettes, ready to install in minutes with step-by-step instructions. Mach4 configuration files are delivered instantly via digital download, making integration seamless.

The SmartSwap ATC-ER25 supports tools up to 1.5 inches in diameter and 2 inches long. For longer tools, simple clearance holes can be drilled through your table beneath each cassette.

Future updates will expand support to additional CNC control platforms, protecting your investment and growing with your shop.

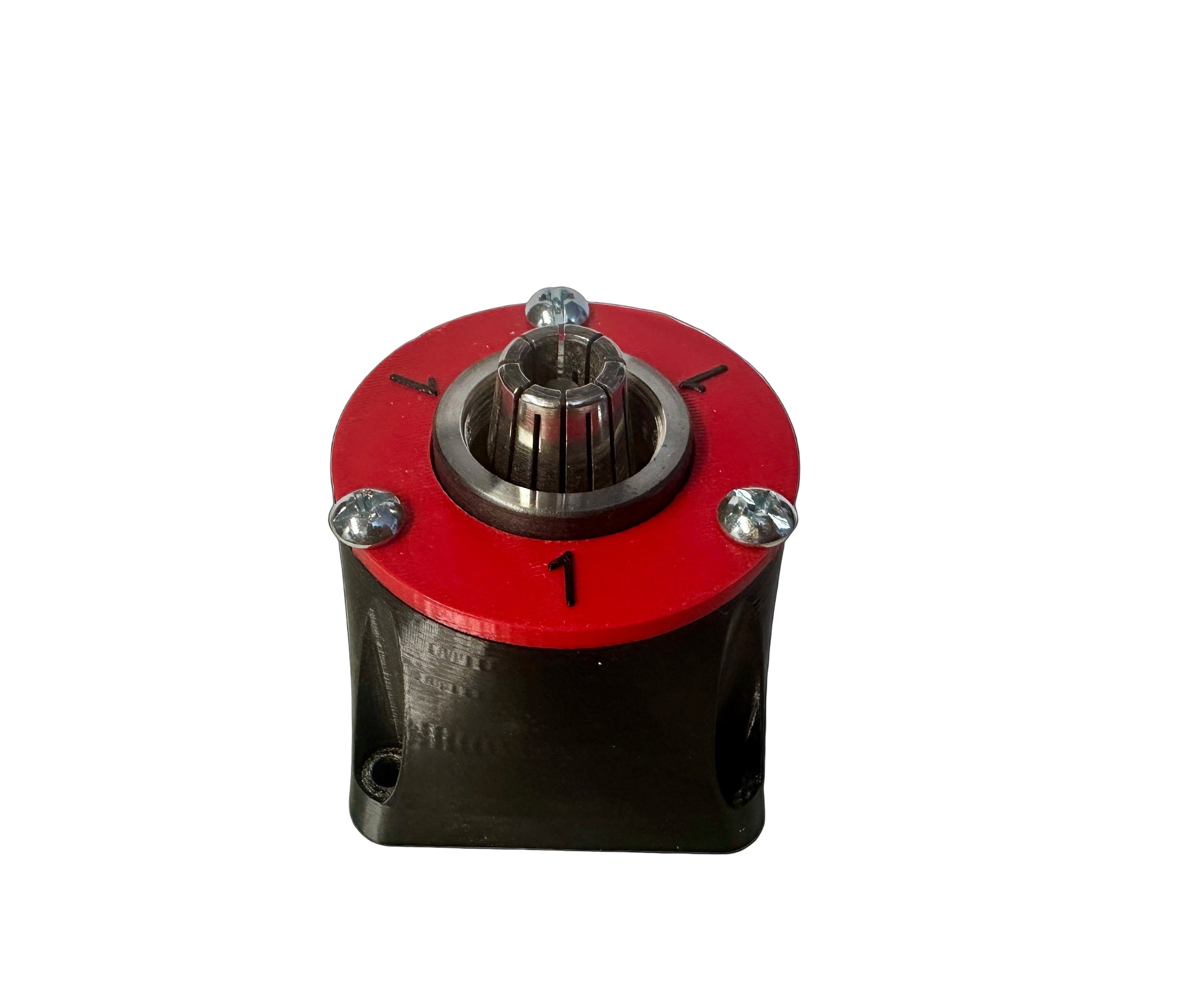

Designed for flexibility, each cassette installs with just four screws—no special fixtures or modifications required. Because every cassette is fully independent, you can place them anywhere on your machine bed to match your workflow: line them up for maximum capacity, or mount them out of the way to preserve valuable machining space. This modular approach lets you expand, rearrange, and adapt your tool storage as your projects evolve.

What You’ll Get:

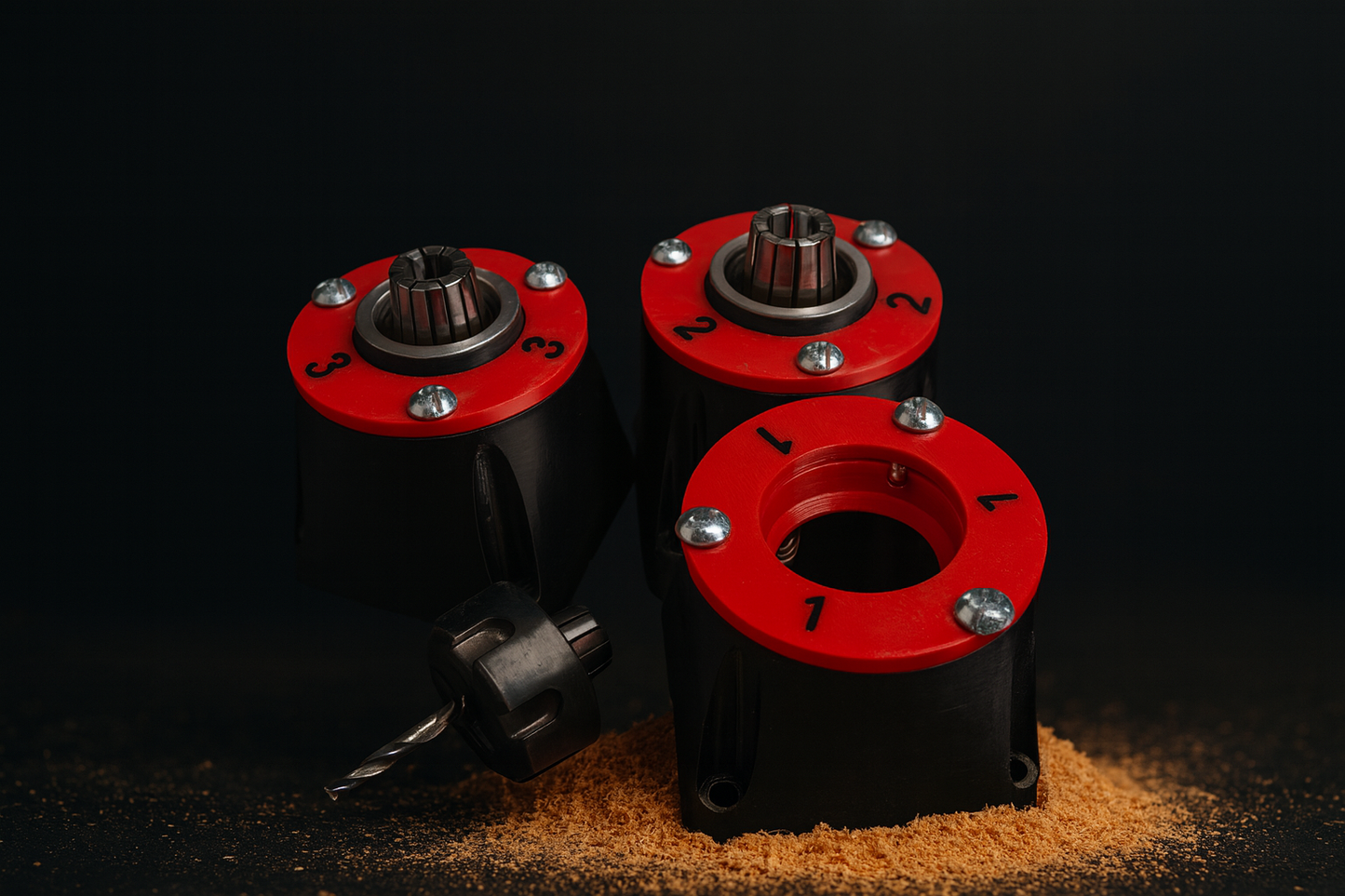

• 3 Fully assembled SmartSwap cassettes

• Step-by-step instructions

• Access to Software downloads


  • Click here for more software information.

What You’ll Need:

• Collets and collet nuts for each tool

• Rubber O-rings sized to fit your tool shanks

• Super glue (to secure O-rings on the tool shank to prevent slipping when not in use)

• A tool setter (widely available and affordable)
